Window Well
36″W X 12″P X 12″H
Window Well
$89.99
12″ projection — not for bedroom egress
A bedroom window well needs 760 mm (30″) clear in front of the window.
Galvanized wells ship in 1–2 business days. Delivery quoted at checkout.
We ship anywhere in Canada, direct from our Calgary manufacturing plant.
Ordering four or more? Contractor pricing applies.
This size against the code
Below the egress minimum
305 mm
Projection — code asks for 760 mm
914 mm
Width along the wall
0.35 m²
Your window opening — measure the sash
Specifications
- Material
- G-90 galvanized steel
- Thickness
- 20 gauge
- Width
- 36″
- Projection
- 12″
- Height
- 12″
- Corrugation
- 2″ pitch × 0.5″ depth
- SKU
- SWW-WELL-36-12-12-GALV

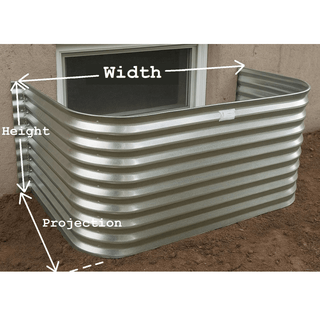

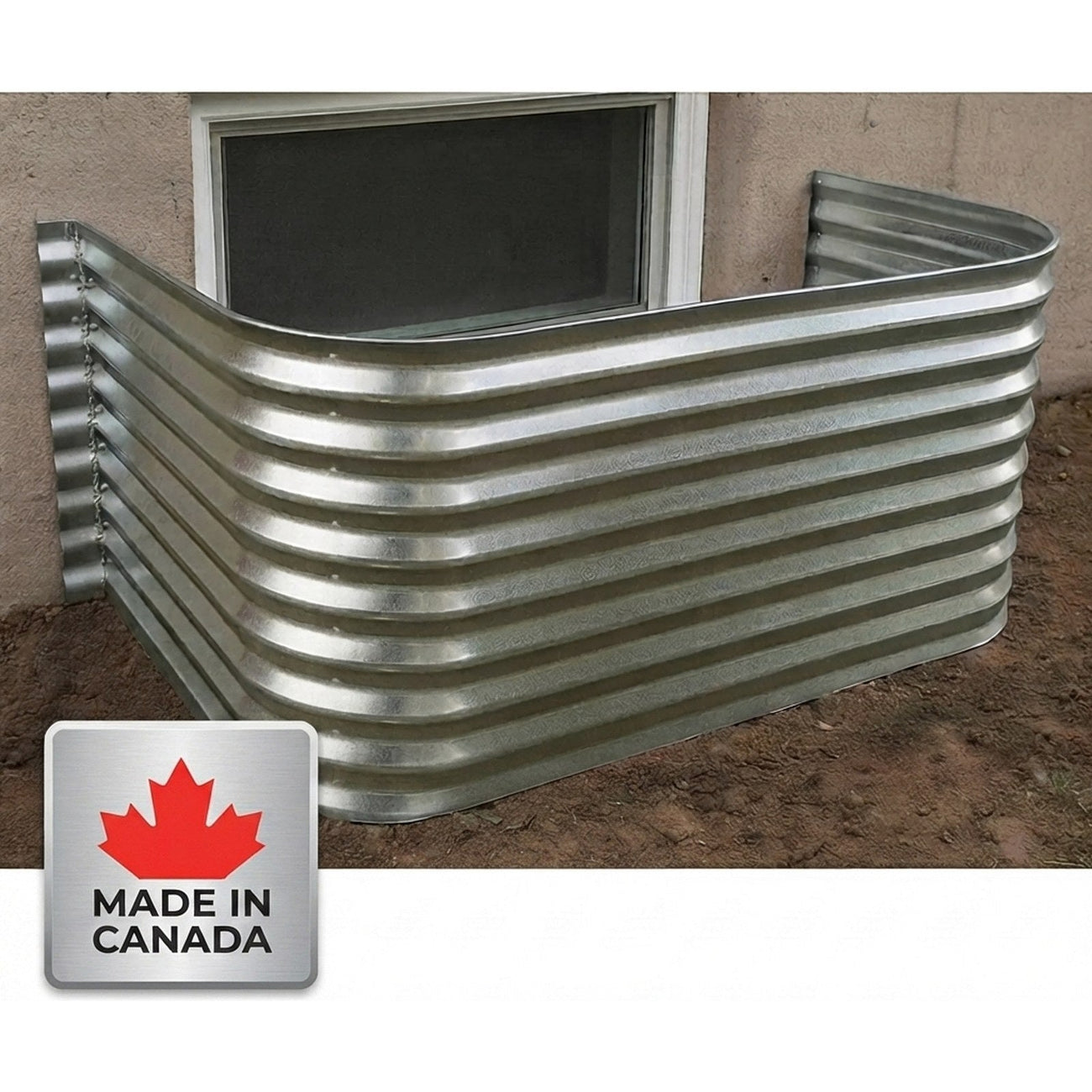

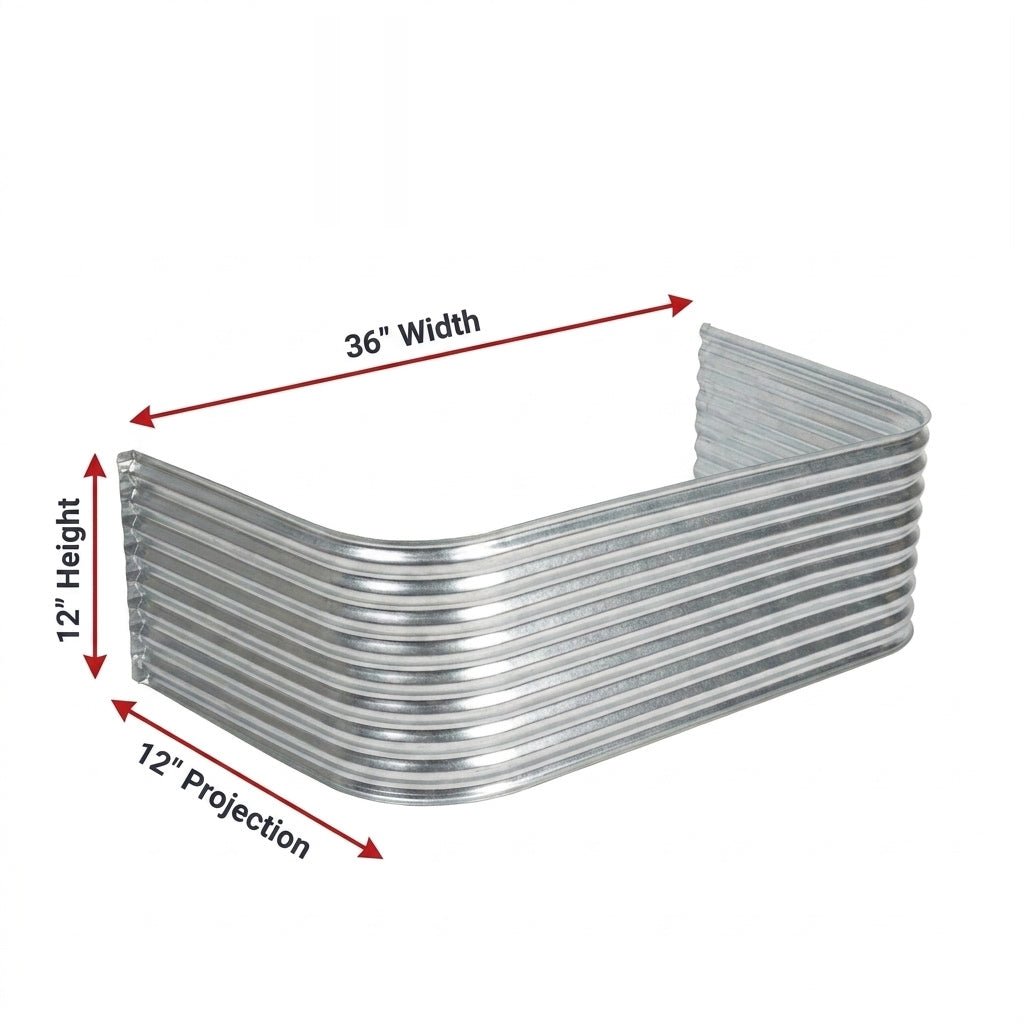

A 20-gauge G-90 galvanized steel window well: 36″ wide along the foundation wall, projecting 12″ out from it, 12″ from grade down to the base.
The shallowest well we make — a light well for basement windows that are close to grade, not a bedroom exit. The curved corrugated profile carries the load, the top edge is folded into a reinforced safety lip, and the 2″ side flanges are pre-punched for the foundation.
Egress
At 12″ this well does not meet the 760 mm clearance the National Building Code requires in front of a bedroom egress window. For a bedroom, order a 30″ projection.
Finish

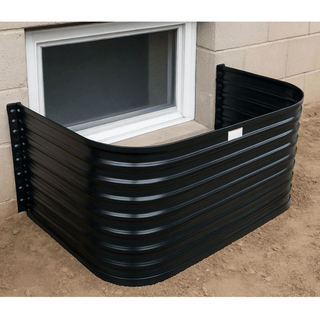

Ships galvanized in 1–2 business days. Gloss black powder coating adds 1–2 weeks to completion.
