36″W X 22″P X 30″H Galvanized Steel Window Well

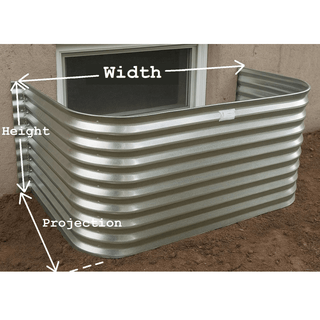

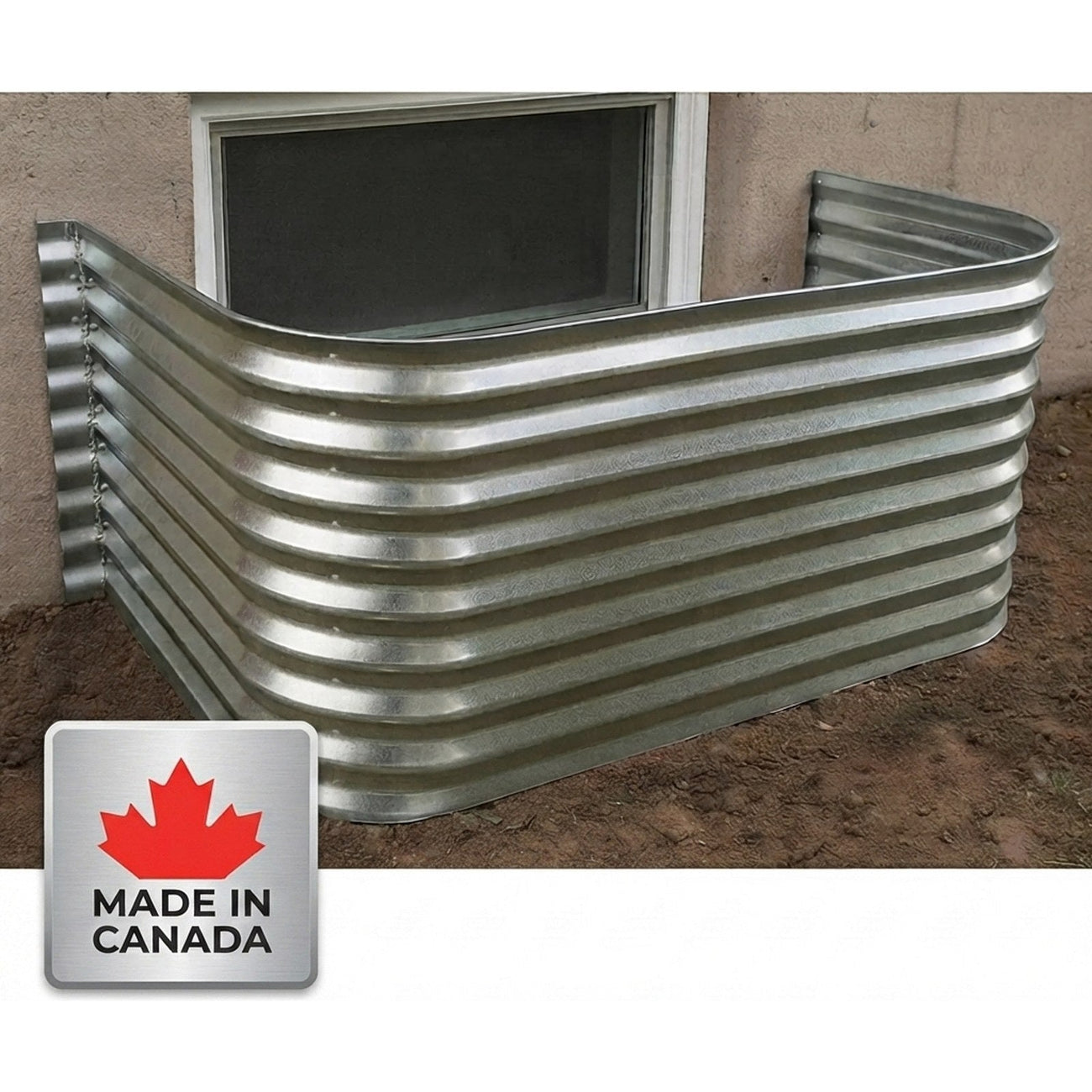

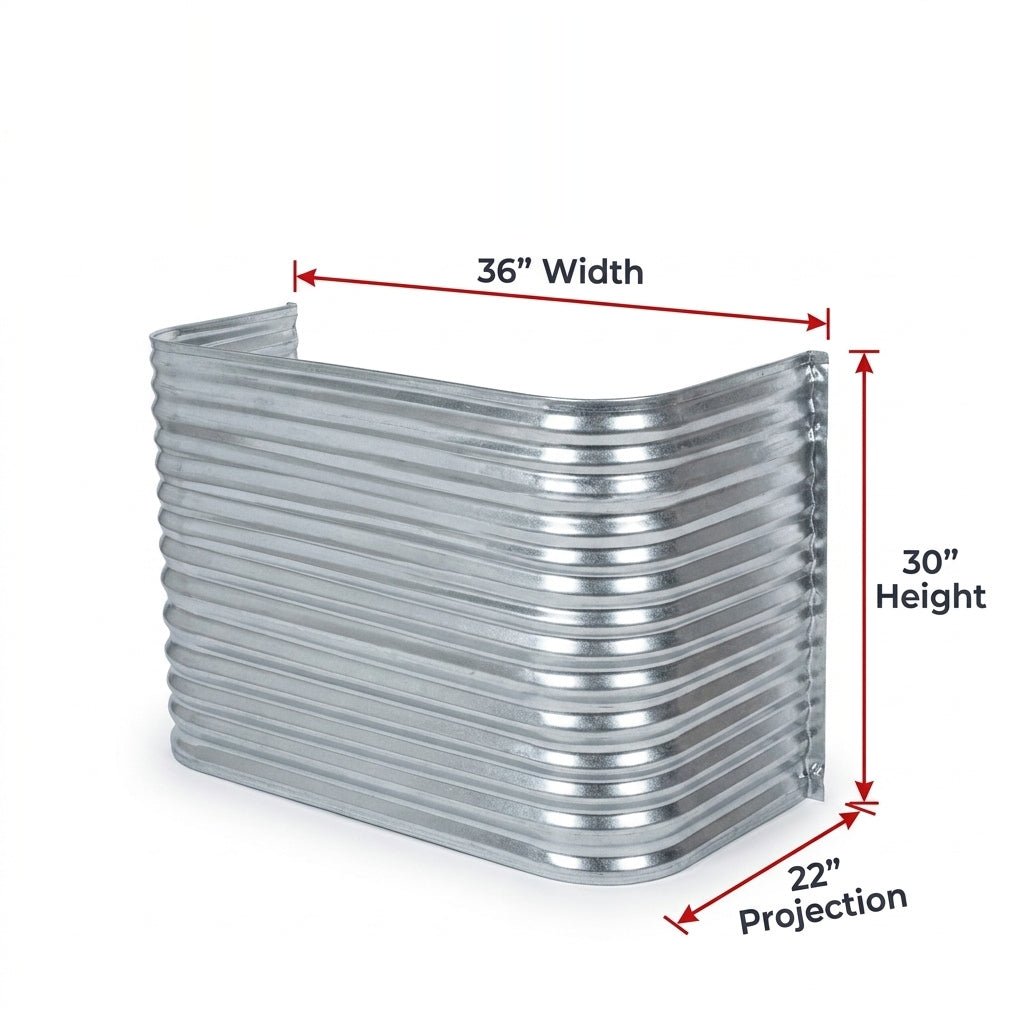

A 20-gauge G-90 galvanized steel window well: 36″ wide along the foundation wall, projecting 22″ out from it, 30″ from grade down to the base.

The curved corrugated profile — 2″ pitch, 0.5″ depth — carries the backfill without the wall bowing. The top edge is folded into a reinforced safety lip, and the 2″ side flanges are pre-punched to fasten straight into the foundation.

Egress

At 22″ this well does not meet the 760 mm clearance required in front of a bedroom egress window. For a bedroom, order a 30″ projection.

Finish

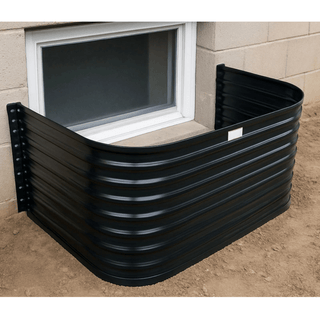

Ships galvanized in 1–2 business days. Gloss black powder coating adds 1–2 weeks to completion.
