48″W X 30″P X 22″H
Window WellSpecifications
- Material
- G-90 galvanized steel
- Thickness
- 20 gauge
- Width
- 48″
- Projection
- 30″
- Height
- 22″
- Corrugation
- 2″ pitch × 0.5″ depth
- Shipping weight
- 27.2 lb
- SKU
- SWW-WELL-48-30-22-GALV

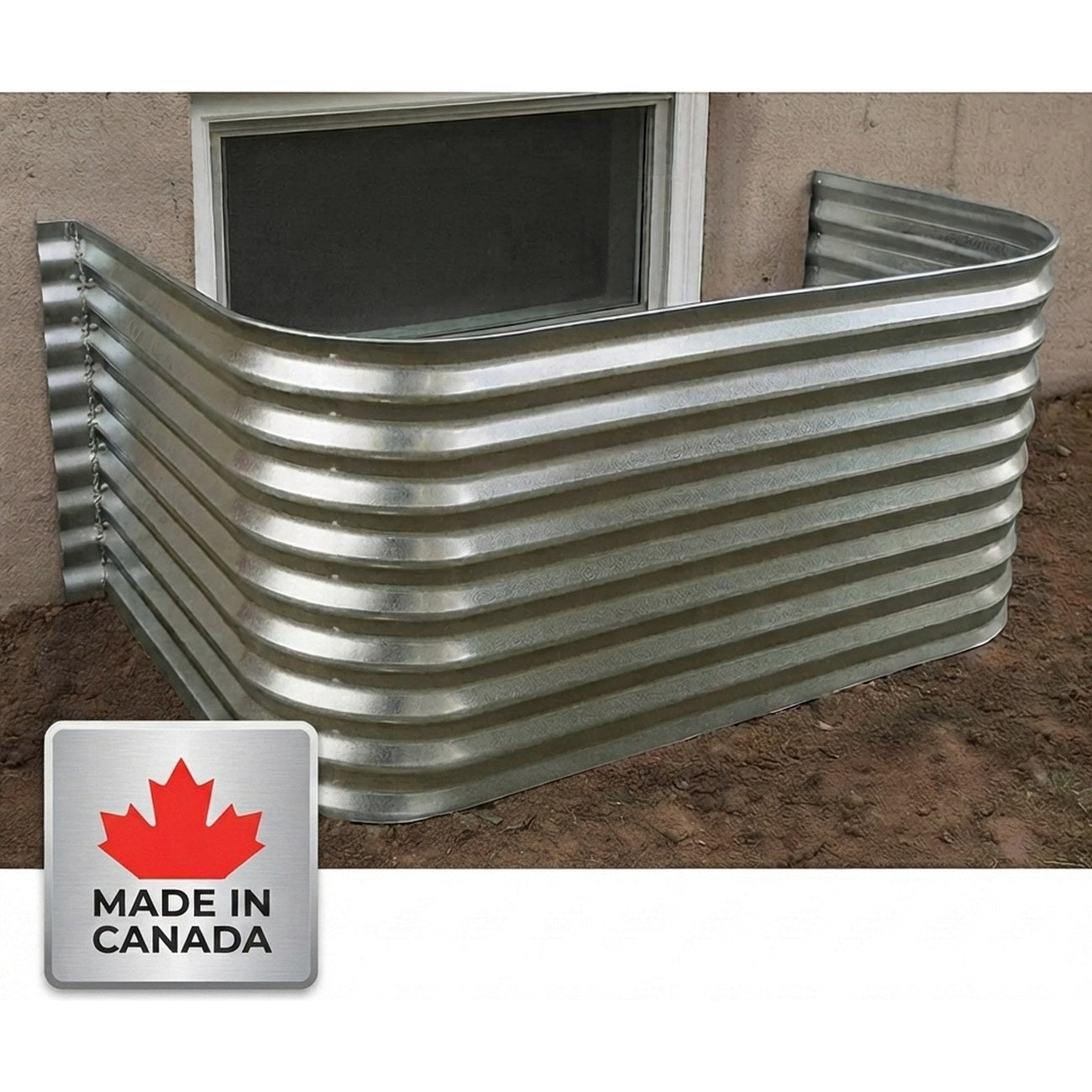

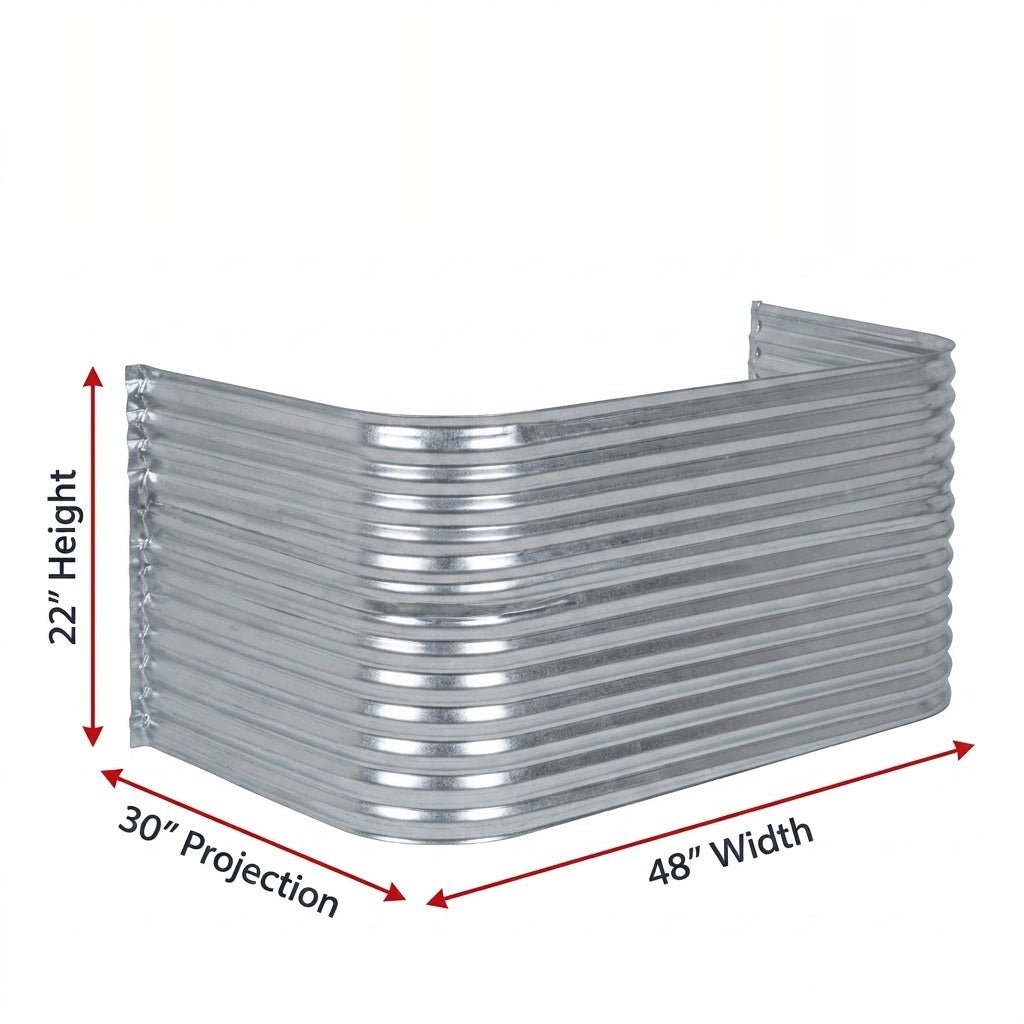

A 20-gauge G-90 galvanized steel window well: 48″ wide along the foundation wall, projecting 30″ out from it, 22″ from grade down to the base.
The curved corrugated profile — 2″ pitch, 0.5″ depth — is what gives a well this thin its strength, and it sheds water down the face instead of holding it against the wall. The top edge is folded back into a reinforced safety lip, so there is no raw sheet metal at hand height, and the 2″ side flanges are pre-punched to fasten straight into the foundation.
Egress
The 30″ projection is 762 mm, clearing the 760 mm of space the National Building Code requires in front of a bedroom egress window (NBC 9.9.10.1). Check the window opening itself and your municipality's amendments before ordering.
Finish
Ships galvanized in 1–2 business days. Gloss black powder coating adds 1–2 weeks to completion.
