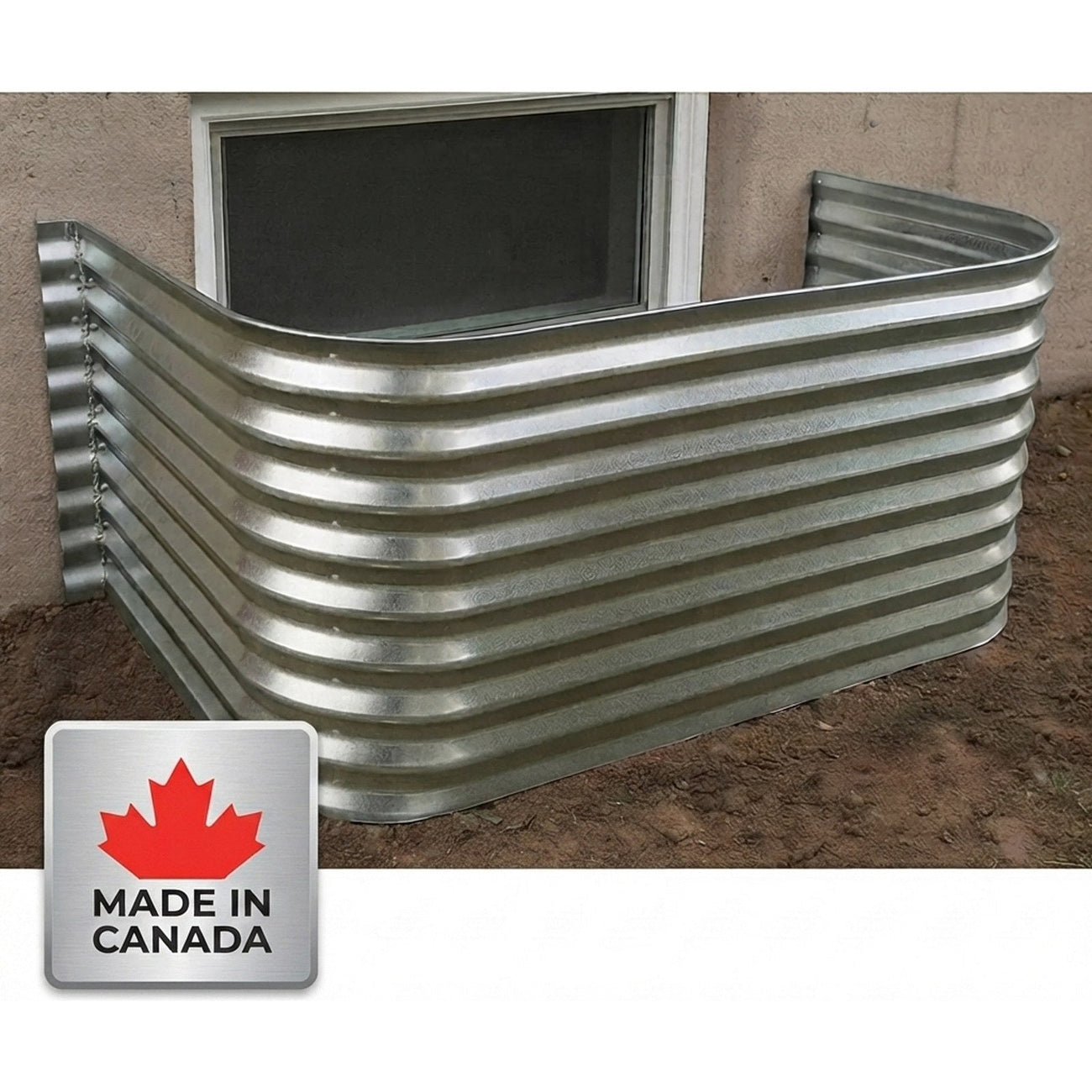

48″W X 30″P X 42″H Galvanized Steel Window Well
48″W X 30″P X 42″H Galvanized Steel Window Well

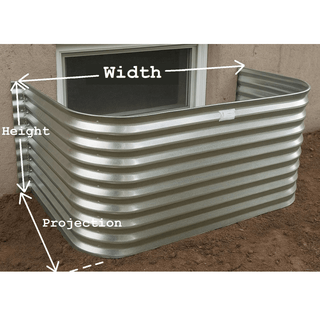

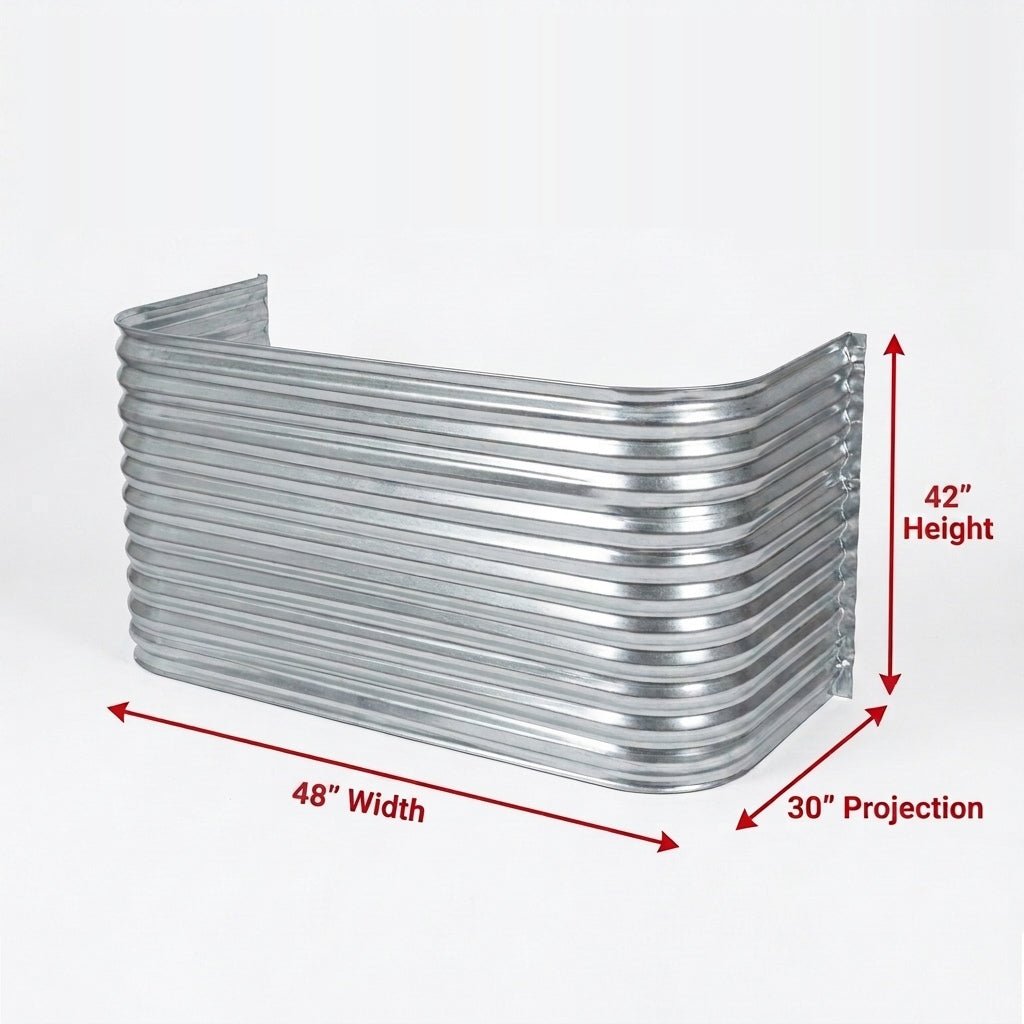

A 20-gauge G-90 galvanized steel window well: 48″ wide along the foundation wall, projecting 30″ out from it, 42″ from grade down to the base.
The deepest 48″ well in the range. The curved corrugated profile — 2″ pitch, 0.5″ depth — carries the backfill without the wall bowing, the top edge is folded into a reinforced safety lip, and the 2″ side flanges are pre-punched for the foundation.
Egress
The 30″ projection is 762 mm, clearing the 760 mm the National Building Code requires in front of a bedroom egress window (NBC 9.9.10.1). Check the window opening itself and your municipality's amendments before ordering.
Finish

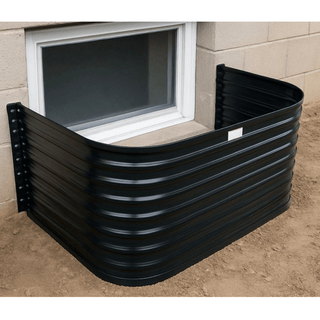

Ships galvanized in 1–2 business days. Gloss black powder coating adds 1–2 weeks to completion.
