49″W X 12″P X 22″H
Window WellSpecifications
- Material
- G-90 galvanized steel
- Thickness
- 20 gauge
- Width
- 49″
- Projection
- 12″
- Height
- 22″
- Corrugation
- 2″ pitch × 0.5″ depth
- SKU
- SWW-WELL-49-12-22-GALV

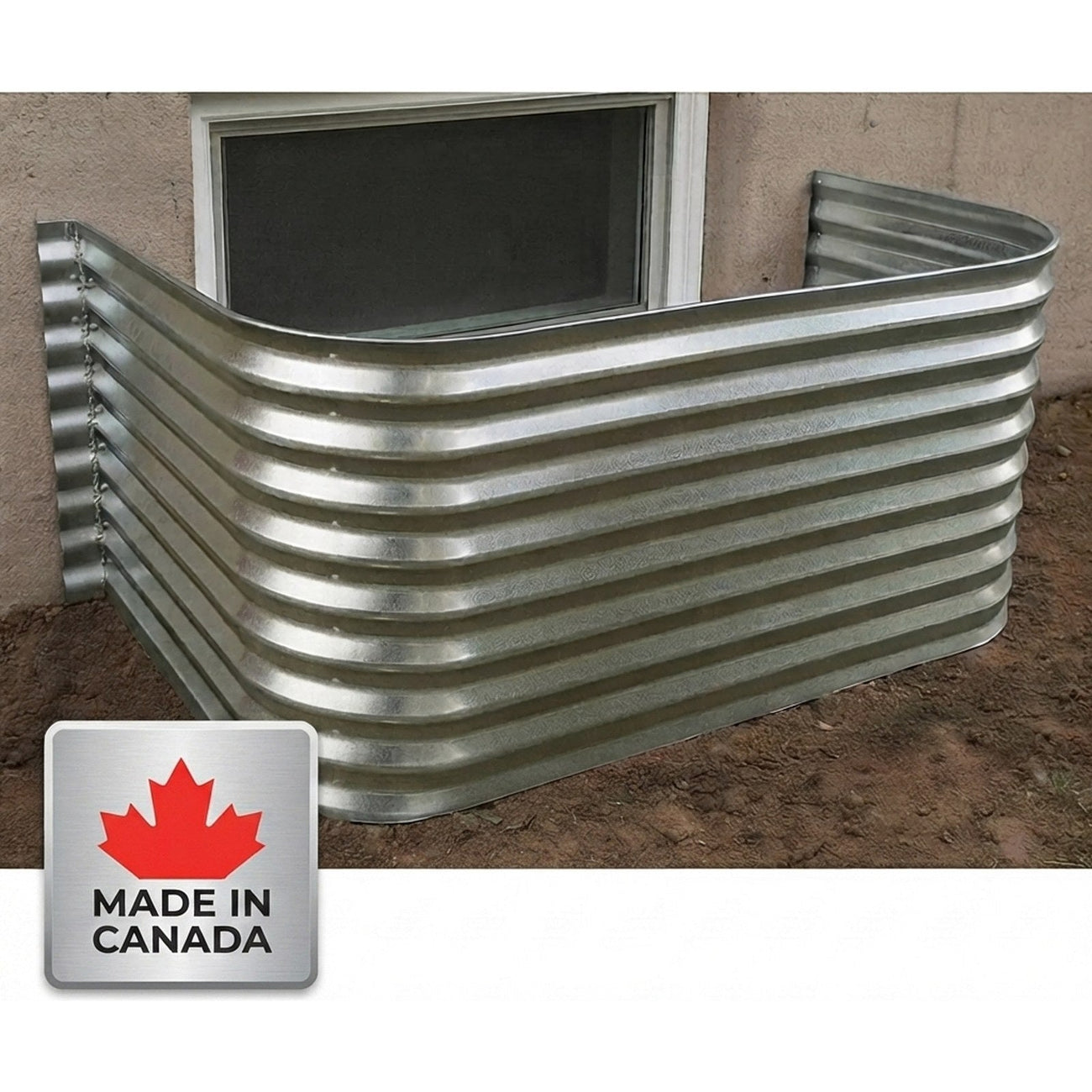

A 20-gauge G-90 galvanized steel window well: 49″ wide along the foundation wall, projecting 12″ out from it, 22″ from grade down to the base.
At 49″ it is the half-inch-over-four-feet size — the one to order when a 48″ well leaves nothing to spare on either side of the opening. At 22″ deep it suits a foundation wall backfilled part of the way up. The curved corrugated profile carries the backfill, the top edge is folded into a reinforced safety lip, and the 2″ side flanges are pre-punched for the foundation.
Egress
At 12″ (305 mm) this well does not meet the 760 mm clearance the National Building Code requires in front of a bedroom egress window. For a bedroom, order a 30″ or 36″ projection.
Finish
Ships galvanized in 1–2 business days. Gloss black powder coating adds 1–2 weeks to completion.
