72″W X 30″P X 42″H
Window WellSpecifications
- Material
- G-90 galvanized steel
- Thickness
- 20 gauge
- Width
- 72″
- Projection
- 30″
- Height
- 42″
- Corrugation
- 2″ pitch × 0.5″ depth
- SKU
- SWW-WELL-72-30-42-GALV

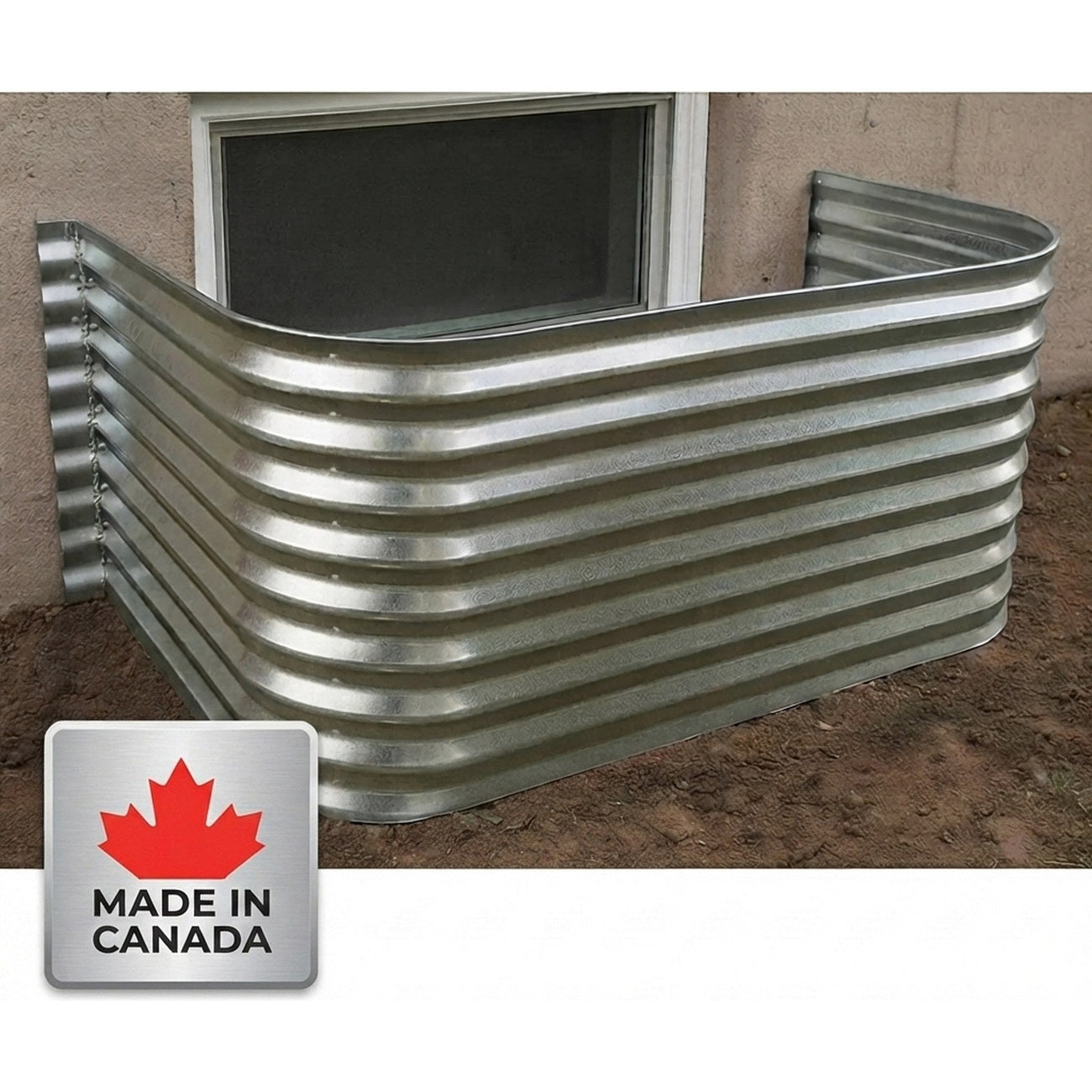

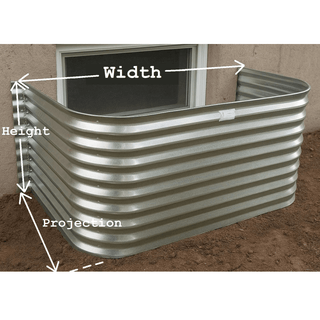

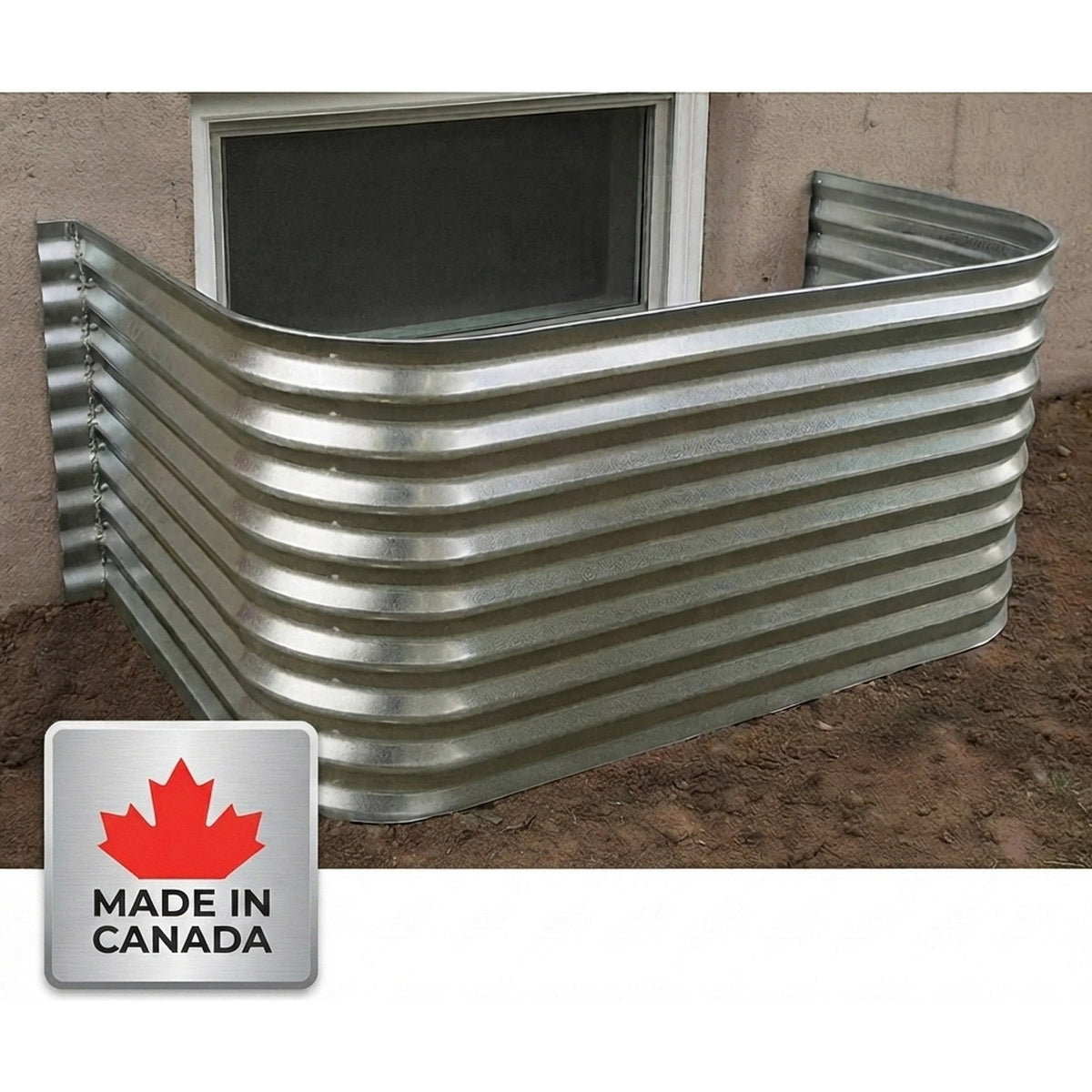

A 20-gauge G-90 galvanized steel window well: 72″ wide along the foundation wall, projecting 30″ out from it, 42″ from grade down to the base.
The largest well in the standard range — wide enough for twin and slider windows, deep enough for a fully buried basement. The curved corrugated profile carries the backfill, the top edge is folded into a reinforced safety lip, and the 2″ side flanges are pre-punched for the foundation.
Egress
The 30″ projection is 762 mm, clearing the 760 mm of space the National Building Code requires in front of a bedroom egress window (NBC 9.9.10.1). Check the window opening itself and your municipality's amendments before ordering.
Finish

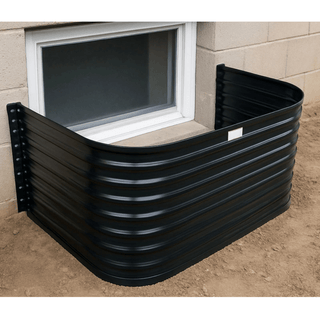

Ships galvanized in 1–2 business days. Gloss black powder coating adds 1–2 weeks to completion.
