30″ projection — meets egress clearance
Window Well
78″W X 30″P X 30″H
Window Well
$289.99
30″ projection clears the 760 mm egress requirementWhat the code asks for
Galvanized wells ship in 1–2 business days. Delivery quoted at checkout.
We ship anywhere in Canada, direct from our Calgary manufacturing plant.
Ordering four or more? Contractor pricing applies.
This size against the code
Clears the well requirement
762 mm
Projection — code asks for 760 mm
1981 mm
Width along the wall
0.35 m²
Your window opening — measure the sash
Specifications
- Material
- G-90 galvanized steel
- Thickness
- 20 gauge
- Width
- 78″
- Projection
- 30″
- Height
- 30″
- Corrugation
- 2″ pitch × 0.5″ depth
- SKU
- SWW-WELL-78-30-30-GALV

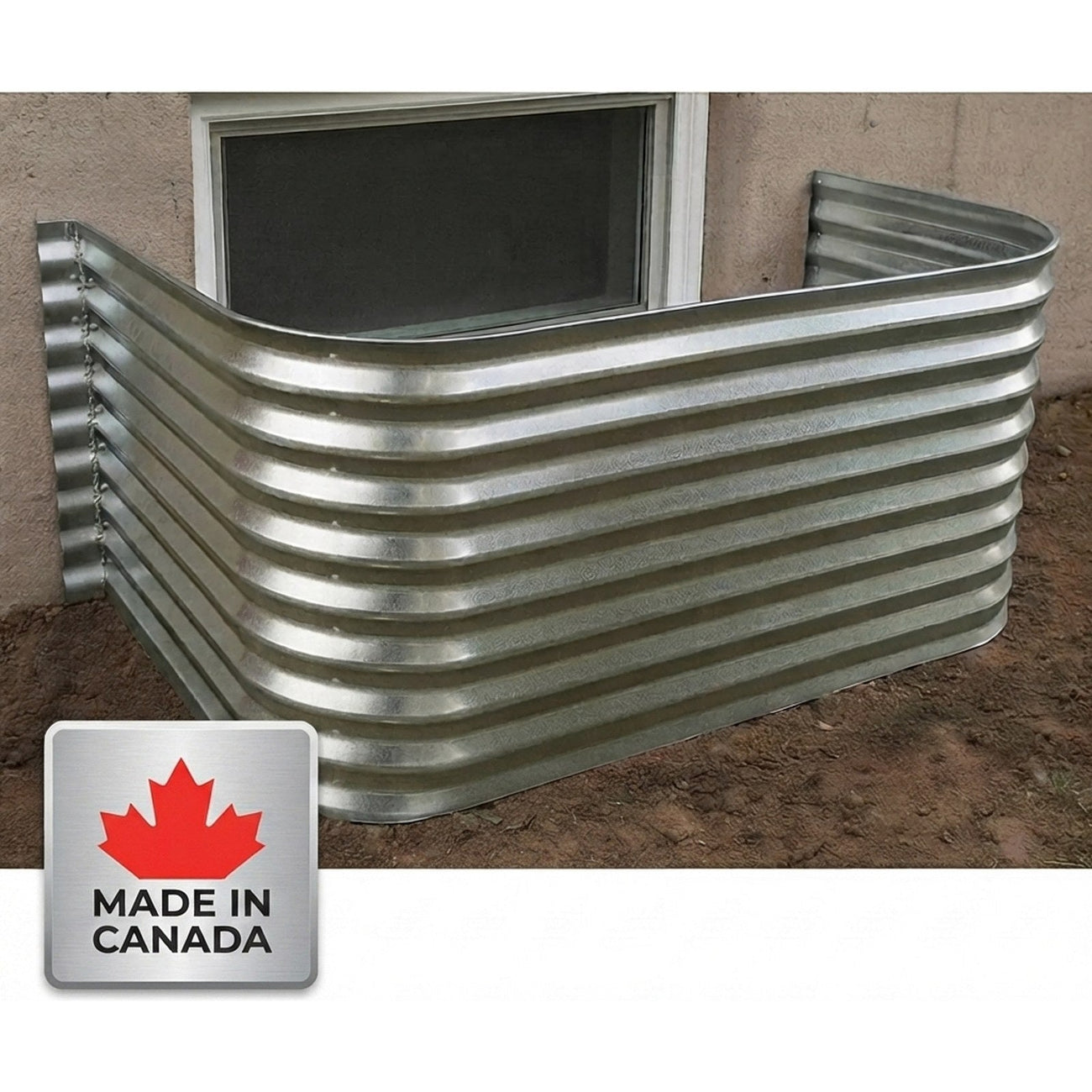

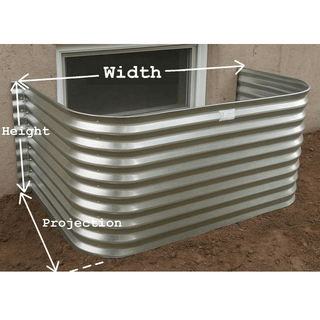

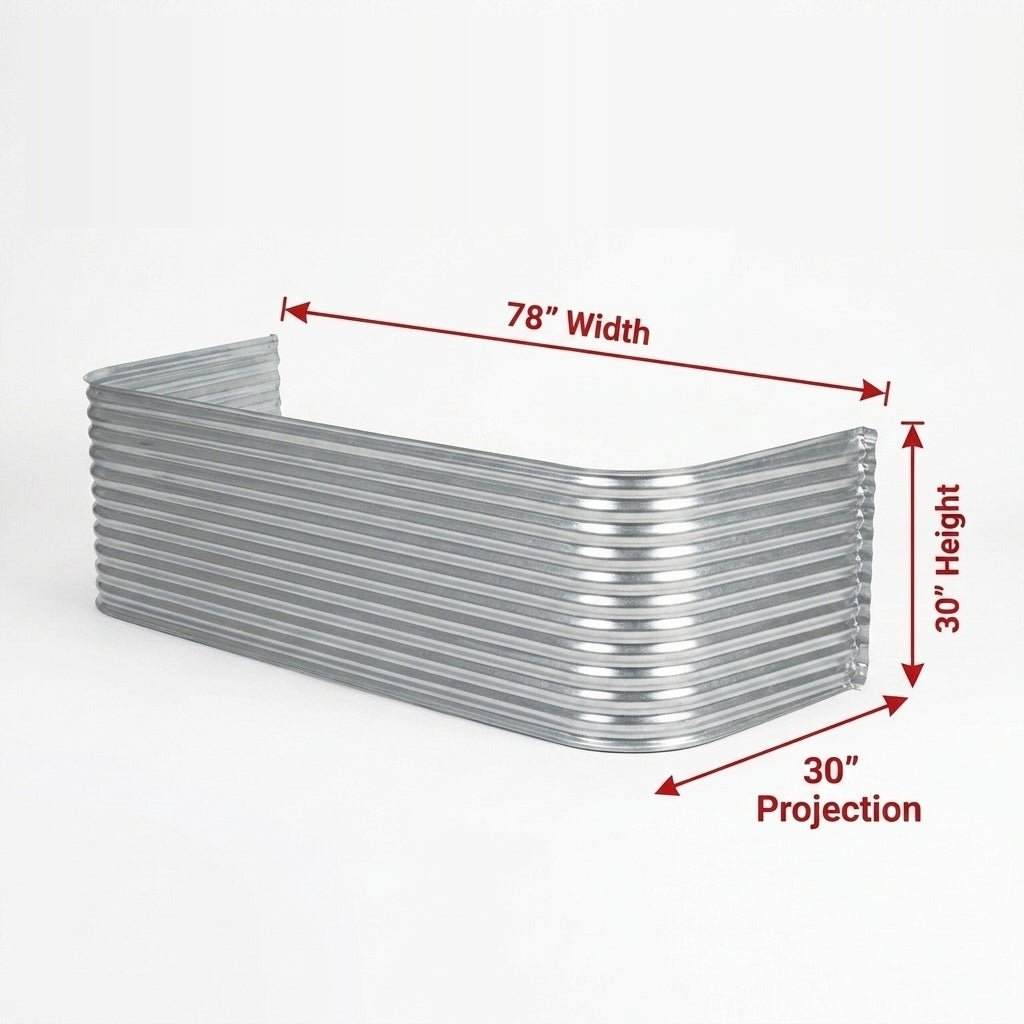

A 20-gauge G-90 galvanized steel window well: 78″ wide along the foundation wall, projecting 30″ out from it, 30″ from grade down to the base.
The largest well in the standard range. The curved corrugated profile — 2″ pitch, 0.5″ depth — carries the backfill without the wall bowing, the top edge is folded into a reinforced safety lip, and the 2″ side flanges are pre-punched for the foundation.
Egress
The 30″ projection is 762 mm, clearing the 760 mm the National Building Code requires in front of a bedroom egress window (NBC 9.9.10.1). Check the window opening itself and your municipality's amendments before ordering.
Finish

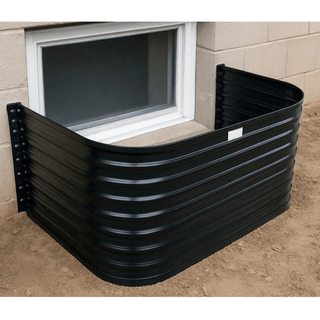

Ships galvanized in 1–2 business days. Gloss black powder coating adds 1–2 weeks to completion.
Sized to match
