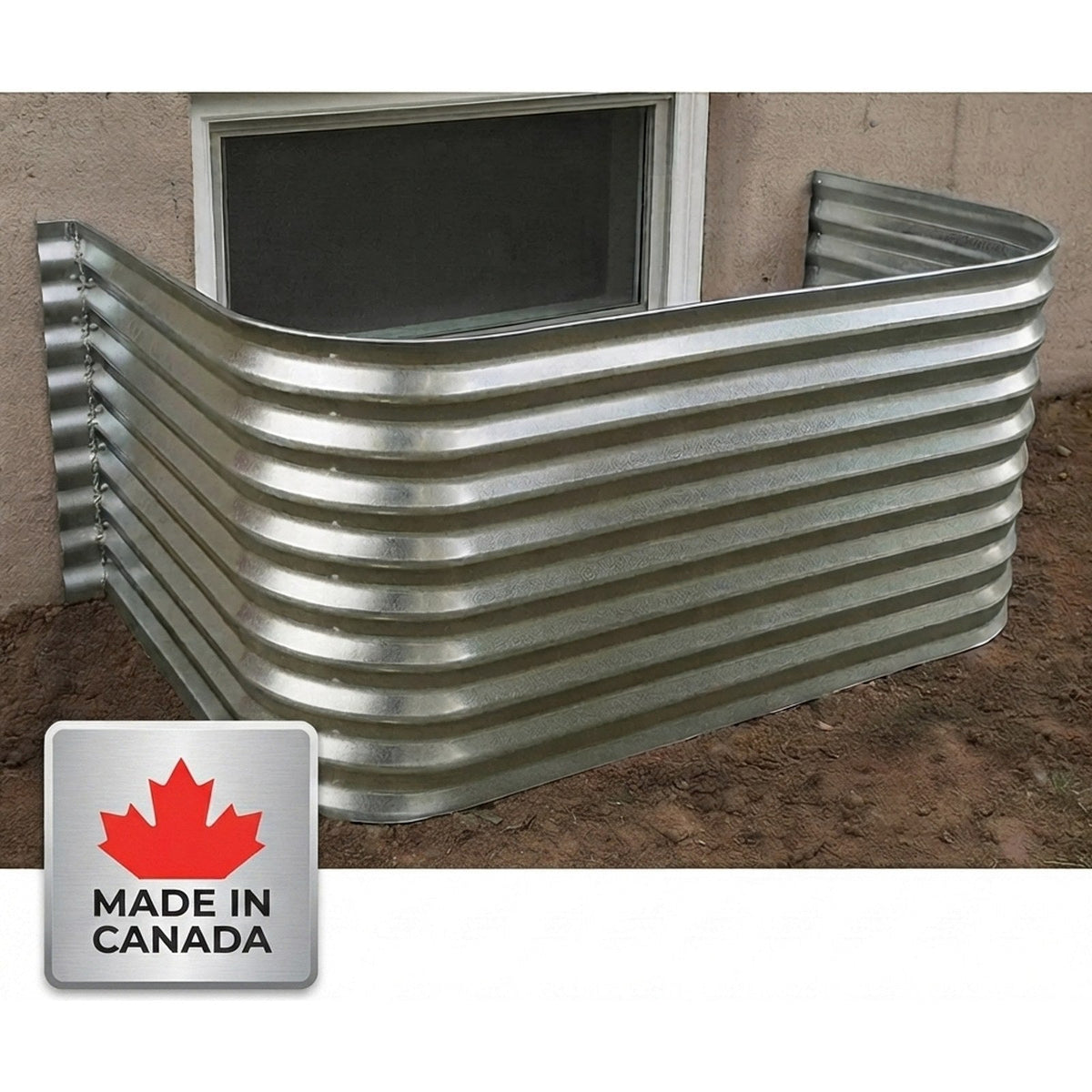

82″W X 30″P X 12″H Galvanized Steel Window Well

A 20-gauge G-90 galvanized steel window well: 82″ wide along the foundation wall, projecting 30″ out from it, 12″ from grade down to the base.

Shallow against the wall at 12″ from grade to base, but with a 30″ footprint out from the foundation. The curved corrugated profile carries the backfill load, the top edge is folded into a reinforced safety lip, and the 2″ side flanges are pre-punched.

Egress

At 30″ of projection this well gives the 760 mm clearance the National Building Code asks for in front of a bedroom egress window. The window itself still has to meet its own opening requirements, and provincial and municipal amendments vary, so confirm the whole arrangement with your building department before you dig.

Finish

Ships galvanized in 1–2 business days. Gloss black powder coating adds 1–2 weeks to completion.
