82″W X 36″P X 22″H Galvanized Steel Window Well

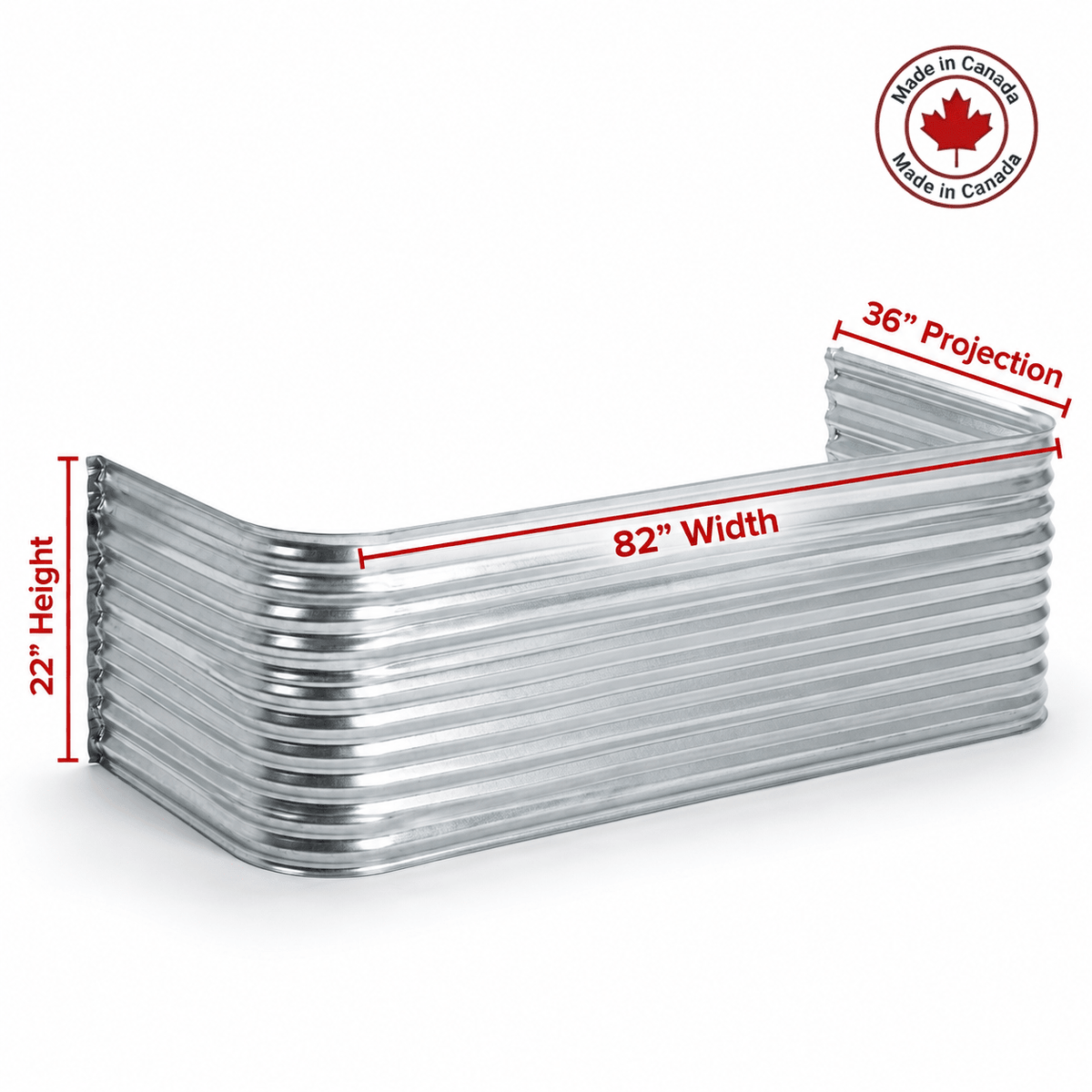

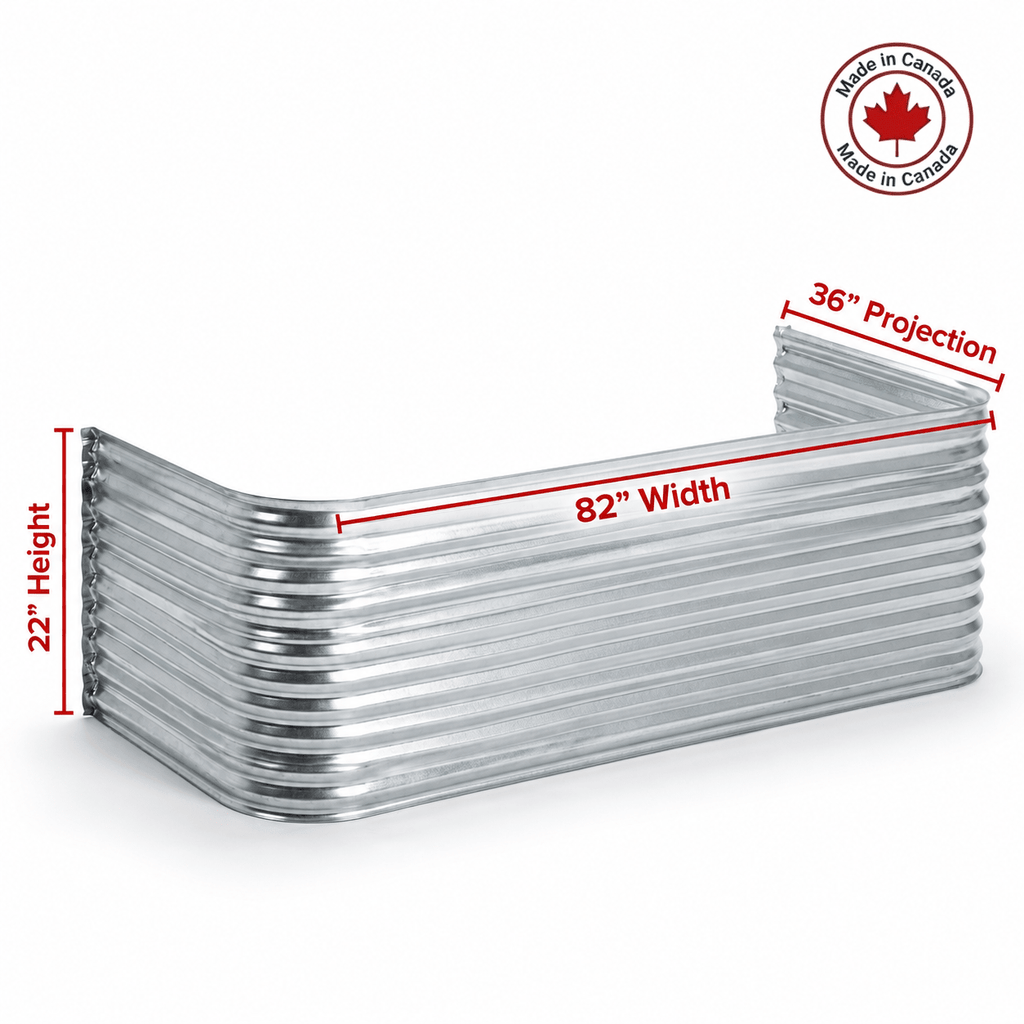

A 20-gauge G-90 galvanized steel window well: 82″ wide along the foundation wall, projecting 36″ out from it, 22″ from grade down to the base.

The curved corrugated profile carries the backfill load without bowing, the top edge is folded into a reinforced safety lip, and the 2″ side flanges are pre-punched for the foundation.

Egress

At 36″ of projection this well gives the 760 mm clearance the National Building Code asks for in front of a bedroom egress window. The window itself still has to meet its own opening requirements, and provincial and municipal amendments vary, so confirm the whole arrangement with your building department before you dig.

Finish

Ships galvanized in 1–2 business days. Gloss black powder coating adds 1–2 weeks to completion.
